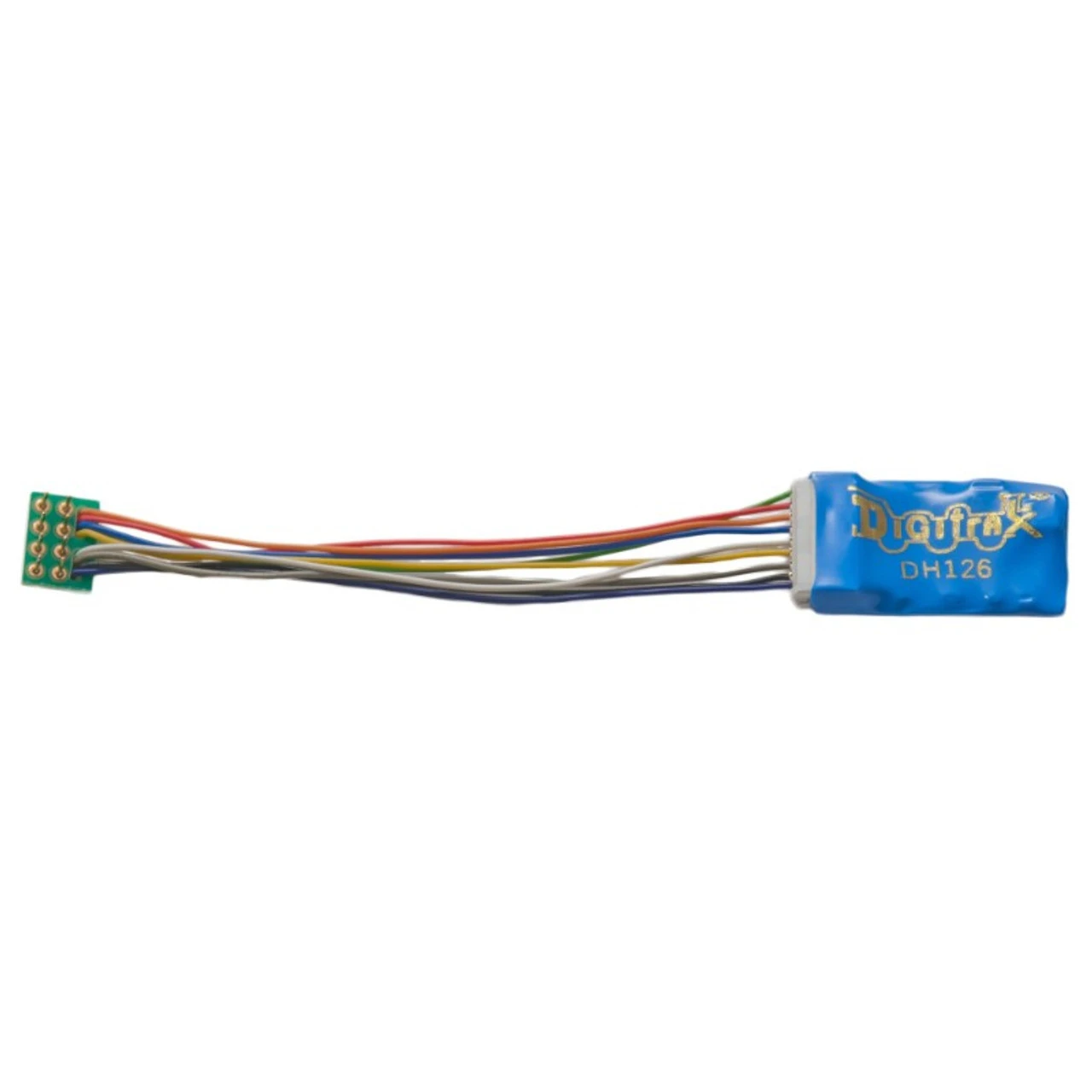

Digitrax DH126P – 1.5 Amp Economy HO Scale Decoder W/ 9pin To DCC Medium

Original price was: $22.62.Current price is: $15.83.

Quality Products, Quality Service

Safe Payments, the Smart Choice

Quality and Affordability Combined

Quality at its Finest

.672” x 1.074” x .259”
17.08mm x 27.28mm x 6.6mm
Digitrax Easy Connect 9 Pin Harness
1.5 Amp/2 Amp Peak Current Rating
2 FX3 Functions, 0.5 Amp Total Function Current Rating

▪FX3 Function outputs for prototypical lighting effects and on/off control:
     Constant Brightness Lighting with directional or independent control.
     Realistic Effects like Ditch lights, Mars lights, strobes, and many more
     FX3 & Standard Function Qualifiers operate functions based on direction,
     F0 on or off, direction and F0, and whether loco is moving.
     FX3 effects optimized for selectable LED or lamp operation
     Configurable FX3 Pulse Function available on all function outputs.
     Function Remapping for custom function setup.
     Master Light Switch turns off all lights & functions with one keystroke.
     Advanced Consist Function Controls

▪Digitrax LocoMotion® System-Your locomotives look like the real thing.
The Digitrax LocoMotion System makes them run like the real thing, too!
     Torque Compensation for smooth as silk silent operation.
     128 Speed Step operation (14 or 28 steps can also be used).
     Momentum with acceleration and deceleration.
     Normal Direction of Travel is user selectable.
     Switching Speed feature for easier and faster access to yard speeds.
     3 Step Speed Tables set start, mid and max voltage for custom control.
     28 Step Speed Tables with 256 level resolution for precise control.

▪Program CVs using any Digitrax Compatible Control system without having to buy any extra equipment.
▪Series 6 Decoder Features.
▪2 Digit and 4 Digit Addressing.
▪Basic, Advanced & UniVersal Consisting.
▪SuperSonic motor drive for silent operation.
▪Direct mode programming.
▪Decoder Reset CV with or without speed table reset.
▪Transponder Equipped ready for transponding on your Layout.
▪Motor Isolation Protection helps prevent damage to your decoder.
▪DCC Compatible.
▪FCC Part 15, Class B RFI compliant.
▪Digitrax “No Worries” Warranty.
