Train Control Systems (TCS) 1402 – LL-8 LED

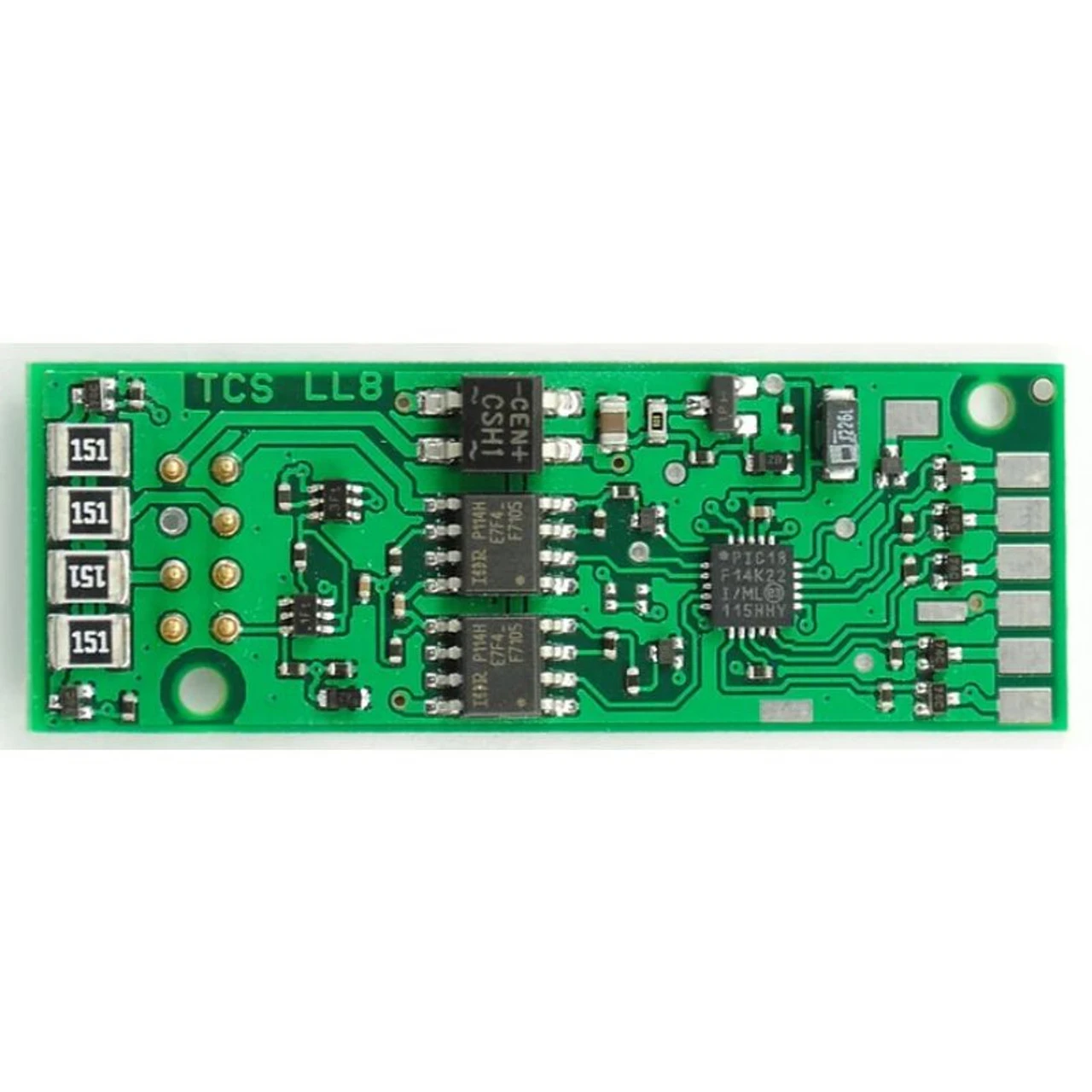

The LL8-LED is a 8-function direct-plug decoder designed specifically to meet the needs of LifeLike/Proto 2000 models. The LL8-LED can quickly be swapped for the existing DC board in your model, making the installation process fast and simple. The LL8-LED has a built-in circuit for LED’s used for the forward and reverse headlights. The remaining 6 lighting functions on the LL8-LED are rated for 12V. IMPORTANT! If your model uses 1.5V incandescent lighting from the factory and you do not plan to upgrade to LED headlight(s) use the LL8.

• Back EMF Load Compensation: Provides superior slow speed control and high performance under load.
• Quiet Drive: Super-quiet motor control for “buzz” free motor performance.
• DC Mode: Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.
• RailCom®: This feature allows the decoder to talk to the command station. RailCom supports expansion for new features.
• Variable Momentum: Allows you to make custom acceleration and deceleration curves.
• LED Support: This product does not require external resistors when connecting LED’s.
• Incandescent Bulb Support: This decoder can be used with 12 Volt bulbs.
• Function Remapping: Buttons 0 through 12 may be used to control the lighting functions of this decoder.
• Programmable Lighting Effects: Choose from 20 separate user-programmable lighting effects!
• Dimmable Brightness: Configure multiple different brightness levels for your LED’s or incandescent bulbs.
• Decoder Lock: Feature which prevents accidental/unwanted programming while activated.
• Airwire™ Compatible: Fully compatible with Airwire™ operation.
• User-Loadable Speed Tables: Configure custom speed curves and set speed limits.
